Robots

Collection of the Robots made by me

Robot Type Description Level(1-10)

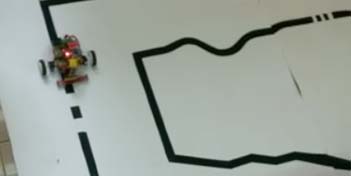

Streak Line Following &
Maze Solver Robot		 Arduino Nano Based PID Line Follower. Polulu 30:1 Micro Metal Gearmotor. Polulu QTR-8RC Reflectance Sensor Array.
Compact design with an effecient design for easy turning by maximising distance between the motors and the sensor array.		 10
Lightning Bolt Arduino Uno Based PID Line Follower. High Torque Johnson Motors. Local 6 Sensor IR Array. 8
Lightning Bolt 2.0 Arduino Nano Based PID Line Follower. Polulu 30:1 Micro Metal Gearmotor. Polulu QTR-8RC Reflectance Sensor Array. 9
RK-Quad Quadcopter Big 6-channel drone with 1km undisturbed range using the FlySky FS-CT6B running on 2.4GHz frequency with 500gm
payload capacity.		 10

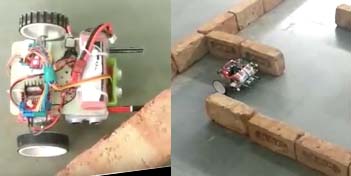

∞ Bot Walled Maze
Solver Robot		 3 Ultrasonic Sensors programmed to work together using Arduino to avoid touching walls and traversing through a
walled maze.		 8

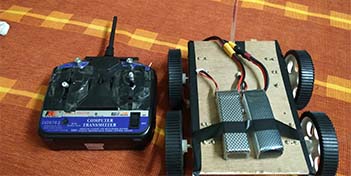

Plex RC Racing &
Multipurposed
for Football		 Variable RPM, high torque, obstacle course wireless robot using FlySky FS-CT6B running on the 2.4GHz frequency. Extra channels for speed control. 8
Wire-Plex Wired version of "Plex" using DPST switches and without speed control. 6
Mini-Plex Scaled down version of Plex. Lower torque at same variable RPM (speed control). 7

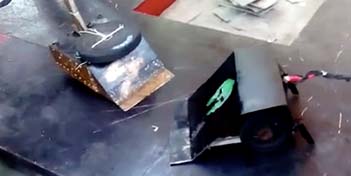

C-9 RoboWars
&
RoboSumo		 1.5ft by 1.5ft robot. 13kg weight. 2 super high torque lift door slider motor. Ramp for pushing opponent. 8

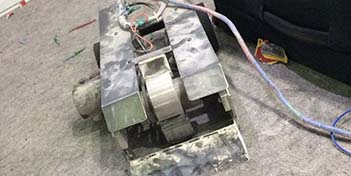

Abbadon 1ft by .75ft robot. 15kg weight. High speed drum as lethal weapon with a ramp. 9
Abbadon 30cm by 30cm robot. 6kg weight. 4 high torque motor. Ramp for pushing opponent. Detachable saw. 7

Tech_Freak on Instructables

Over 95,000 views on my istructables related to electronics and technology on the famous DIY website, Instructables. Bronze medal for achieving 10k+ views.

Image Gallery
